What Is ESD Flooring? A Buyer’s Guide to Systems & Installers

In facilities where sensitive electronics, flammable materials, or precision manufacturing equipment are in play, an uncontrolled electrostatic discharge event can destroy components, trigger ignition, or corrupt data in a fraction of a second. ESD flooring is the foundation-level solution that controls static buildup before it can discharge, protecting both the people and the equipment in the space. It is not a specialty product for edge-case applications. It is a compliance and risk management requirement for a wide and growing range of commercial and industrial facilities. For operations in Braintree, MA and surrounding areas managing electronics manufacturing, defense work, healthcare technology, or chemical processing, understanding what ESD flooring systems require is where the specification process has to start. The same technical discipline that defines high-performance flooring systems built for demanding commercial environments applies directly to how ESD systems are specified and installed.

Here is what you will learn in this guide:

• What ESD flooring is, how it works, and where it is required
• The primary ESD flooring system types and how they compare in performance and application
• How to evaluate ESD flooring specifications against industry standards including ANSI/ESD S20.20
• What the installation process involves and why it affects long-term system performance
• How to select an ESD flooring installer in Braintree, MA and surrounding areas who can deliver a compliant, verified system

Why ESD Flooring Is a Technical Requirement, Not an Upgrade

Static electricity is invisible, silent, and ubiquitous in commercial and industrial environments. Every time a person walks across a floor, they generate triboelectric charge that accumulates on the body and discharges when contact is made with a grounded object or a sensitive component. In a standard office, this produces a mild shock. In an electronics manufacturing facility, it can destroy a microprocessor. In a facility handling flammable vapors or explosive dusts, it can trigger an ignition event with far more serious consequences.

The International Electrotechnical Commission and ANSI/ESD Association standards define the thresholds at which electrostatic discharge becomes a product reliability and safety risk, and the facilities subject to those thresholds are not exotic. Electronics assembly, semiconductor fabrication, defense systems manufacturing, hospital operating rooms and ICUs, data center environments, and facilities handling flammable chemicals all have documented ESD requirements that the flooring system must support. For commercial and industrial facilities in Braintree, MA and surrounding areas operating in any of these sectors, ESD flooring is not a preference. It is part of the facility’s compliance and risk management infrastructure. Here is what a correctly specified ESD flooring system provides:

• Electrostatic Discharge Control: A properly specified ESD floor dissipates charge from people and equipment through a controlled, grounded path before it can accumulate to damaging or ignition-level thresholds.
• Component Protection: In electronics manufacturing and assembly environments, ESD flooring is the primary defense against the latent and catastrophic component damage that electrostatic discharge causes at the board and chip level.
• Ignition Prevention: In facilities handling flammable vapors, liquids, or explosive dusts, ESD flooring eliminates the ignition source that uncontrolled static discharge represents, making it a critical process safety control.
• Regulatory and Standards Compliance: ANSI/ESD S20.20, IEC 61340-5-1, NFPA 77, and other applicable standards specify flooring resistance requirements that documented ESD systems satisfy and standard commercial flooring does not.
• Workforce Protection: In facilities where the human body itself can carry damaging levels of static charge, ESD flooring combined with grounding footwear protects both the worker and the sensitive equipment they handle.

5 Types of ESD Flooring Systems Every Buyer Should Know

ESD flooring is not a single product category. It encompasses several distinct system types with different chemistries, performance characteristics, installation requirements, and maintenance profiles. Understanding the differences is what allows a facility to specify the system that actually meets its requirements rather than a system that was marketed as ESD-capable without the performance data to back it up.

1. Conductive Epoxy Flooring Systems

Conductive epoxy systems are the most widely specified ESD flooring solution for new and renovated industrial and commercial facilities. They consist of a standard epoxy base coat system with a conductive carbon black or graphite component integrated into one or more layers, combined with a copper grounding grid embedded in or beneath the coating that provides the conductive pathway to ground.

Resistance values for conductive epoxy systems typically fall in the range of 25,000 to 1,000,000 ohms, which satisfies ANSI/ESD S20.20 requirements for most electronics assembly and manufacturing applications. The system is seamless, durable, chemically resistant, and cleanable, which makes it the natural specification choice for facilities that need ESD performance alongside the mechanical and chemical durability requirements of an active industrial floor.

• Conductive carbon black loading in the epoxy matrix provides consistent resistance values throughout the coating thickness rather than only at the surface
• Copper grounding strips are installed in a grid pattern beneath the conductive layer and connected to the facility’s electrical ground at specified intervals
• Verification testing of installed resistance values using the ANSI/ESD STM7.1 walking body voltage test method confirms that the system performs as specified before the facility is commissioned

2. Static Dissipative Epoxy Flooring Systems

Static dissipative epoxy systems operate in a higher resistance range than conductive systems, typically between 1,000,000 and 1,000,000,000 ohms. This range dissipates static charge more slowly than a conductive system, which is actually preferable in some applications where very rapid charge dissipation could cause its own equipment damage issues.

The choice between conductive and static dissipative specification is driven by the specific sensitivity thresholds of the components or processes in the facility, which are typically defined by the equipment manufacturer or the applicable industry standard rather than by the flooring installer. Static dissipative systems use the same epoxy base chemistry as conductive systems but with different additive loading to achieve the higher resistance target.

• Static dissipative systems are preferred for facilities handling components with sensitivity thresholds where very rapid discharge could be as damaging as charge accumulation
• The resistance range for static dissipative floors satisfies ANSI/ESD S20.20 requirements for many electronics handling and assembly applications
• Static dissipative systems are available in the same color, finish, and aggregate broadcast options as standard commercial epoxy, which allows ESD performance to be specified without compromising the visual and functional characteristics of the floor

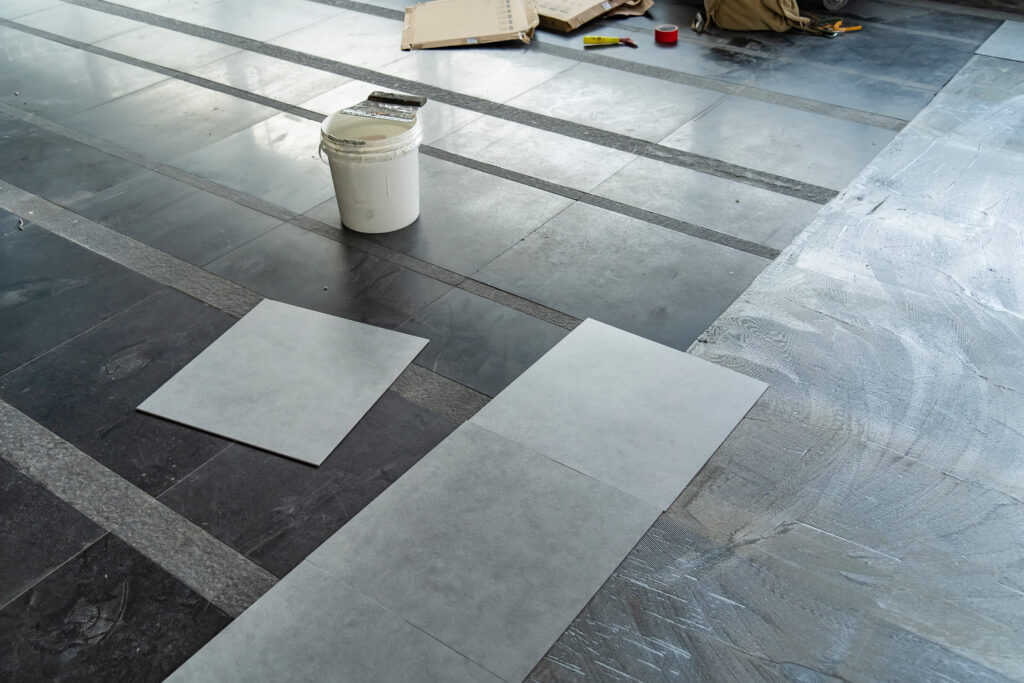

3. ESD Vinyl Tile and Sheet Flooring

ESD vinyl tile and sheet systems incorporate conductive or static dissipative additives into the vinyl matrix and provide ESD control through contact between the tile surface and grounding footwear worn by personnel. These systems are commonly specified for control rooms, server rooms, office areas within electronics facilities, and any environment where the aesthetic and comfort characteristics of resilient flooring are preferred over hard-coat epoxy systems.

ESD vinyl systems are generally easier and faster to install than epoxy systems and can be replaced in sections when individual tiles are damaged, which is a meaningful maintenance advantage in certain facility types. Their limitation is that the ESD performance depends on the conductivity path through the footwear, which means the system’s effectiveness is only as good as the grounding footwear worn in the space.

• ESD tile requires conductive adhesive and a conductive underlayment or grounding grid beneath the tile to complete the path to ground
• Resistance values for ESD vinyl tile typically fall in the static dissipative range and must be verified by testing after installation
• Unlike epoxy systems, ESD vinyl is not appropriate for environments with heavy chemical exposure, forklift traffic, or other mechanical demands that exceed the performance limits of resilient flooring

4. ESD Epoxy Terrazzo Systems

ESD terrazzo systems combine the aesthetic versatility and longevity of epoxy terrazzo with a conductive matrix that provides ESD performance throughout the thickness of the topping layer. These systems are specified in high-end institutional, healthcare, and technology campus environments where the durability and appearance of terrazzo are required alongside ESD control.

ESD terrazzo is the highest-upfront-cost ESD flooring option and also the longest service life system, with properly installed terrazzo regularly lasting 40 years or more. For facilities in Braintree, MA and surrounding areas planning major capital projects in healthcare or advanced technology sectors, ESD terrazzo should be evaluated on a lifecycle cost basis rather than dismissed on initial price per square foot.

• Conductive matrix in ESD terrazzo provides consistent resistance values independent of the aggregate pattern or color selection
• Grounding grid installation for ESD terrazzo follows the same approach as conductive epoxy systems
• ESD terrazzo can be polished and maintained using standard terrazzo maintenance methods without affecting the conductive performance of the system

5. Conductive Rubber and Interlocking Tile Systems

Conductive rubber flooring and interlocking conductive tile systems are modular ESD flooring solutions used in workstation areas, assembly benches, and equipment staging zones where a localized ESD-controlled surface is needed without a full floor installation. These systems sit on top of the existing floor, connect to ground through a grounding cord or conductive underlayment, and can be repositioned or removed as the facility layout changes.

They are not a substitute for a specified ESD flooring system in a full controlled area but are a practical and cost-effective solution for targeted ESD control in specific work zones within a larger facility.

• Conductive rubber mats must be connected to ground through a verified grounding path to provide ESD protection. A mat that is not grounded provides no meaningful ESD control
• Resistance values for conductive rubber products vary by manufacturer and must be verified against the applicable standard for the intended application
• Interlocking tile systems allow custom coverage configurations and can be expanded or reconfigured as workstation layouts change without reinstallation of the primary floor system

ESD Standards Every Facility Manager Should Know

Specifying ESD flooring without reference to the applicable standards is the most common source of compliance failures in new and renovated ESD-controlled facilities. The standards define the resistance thresholds the floor must meet, the test methods used to verify compliance, and the ongoing monitoring requirements that demonstrate continued compliance over the life of the installation.

• ANSI/ESD S20.20: The primary standard for the development of ESD control programs in electronics manufacturing environments. Defines requirements for flooring resistance, walking body voltage, and personnel grounding that the floor system must support.
• IEC 61340-5-1: The international equivalent to ANSI/ESD S20.20, increasingly required for facilities supplying to European and international electronics customers.
• ANSI/ESD STM7.1: The test method for measuring floor resistance in installed ESD flooring systems. Compliance testing using this method confirms that the installed floor meets the specified resistance range before the facility is commissioned.
• NFPA 77: The recommended practice for static electricity management in facilities handling flammable and combustible materials. Defines the flooring resistance requirements for hazardous area applications where ignition prevention is the primary objective.
• OSHA and local fire codes: Applicable to facilities where static-related ignition risks are present. Flooring specifications in these environments must satisfy both the ESD performance standard and any applicable fire code requirements for the occupancy classification.

How to Select an ESD Flooring Installer

ESD flooring installation is not the same as general commercial flooring installation, and the installer matters as much as the product specification. A conductive epoxy system installed without proper grounding grid placement, connection verification, or resistance testing after installation may look identical to a correctly installed system while providing no meaningful ESD control at all.

What Qualified ESD Flooring Installers Demonstrate

A qualified ESD flooring installer understands the applicable standards for the facility type, specifies the system to meet the documented resistance requirements rather than simply selecting a product labeled as ESD-capable, installs the grounding grid to the manufacturer’s specifications and verifies the grounding connections before the finish coat is applied, and conducts resistance testing after installation using the appropriate test method to confirm that the installed system performs within the specified range.

For commercial and industrial facilities in Braintree, MA and surrounding areas, asking an installer to provide documentation of previous ESD flooring installations, resistance test results from completed projects, and familiarity with the applicable standard for your facility type is the minimum due diligence before awarding an ESD flooring project.

What to Include in Your ESD Flooring Specification

A complete ESD flooring specification identifies the applicable standard and the resistance range the floor must achieve, the grounding grid design and installation method, the coating system by manufacturer and product name, the number of coats and the target dry film thickness, the test method that will be used to verify installed performance, and the documentation that will be provided upon project completion. Without these elements in the specification, there is no basis for verifying that the installed system is actually compliant.

Ongoing Testing and Maintenance

ESD flooring performance is not static. Contamination, coating wear, cleaning chemical incompatibility, and changes to the grounding infrastructure can all affect the resistance values of an installed system over time. Facilities with ANSI/ESD S20.20 compliance programs are required to conduct periodic verification testing of floor resistance and walking body voltage as part of their ongoing ESD control program documentation. Build resistance testing into the facility’s annual maintenance schedule and address any areas that test outside the specified range before they become a compliance or product reliability issue.

Specify and Install Your ESD Flooring System Correctly

ESD flooring that is correctly specified, properly installed, and verified to perform within the applicable resistance range is a reliable, long-term asset that protects sensitive components, prevents ignition events, and supports regulatory compliance. ESD flooring that is misspecified, improperly grounded, or never tested after installation is a liability that looks identical from the outside.

McLean Company works with commercial and industrial facilities across New England to specify and install ESD flooring systems that meet the documented requirements of the applicable standards. We understand the technical requirements, install to the manufacturer’s specifications, and provide documented resistance test results that confirm the system performs as specified.

Contact us today to discuss your ESD flooring requirements and get a specification built around the actual performance standards your facility needs to meet.
